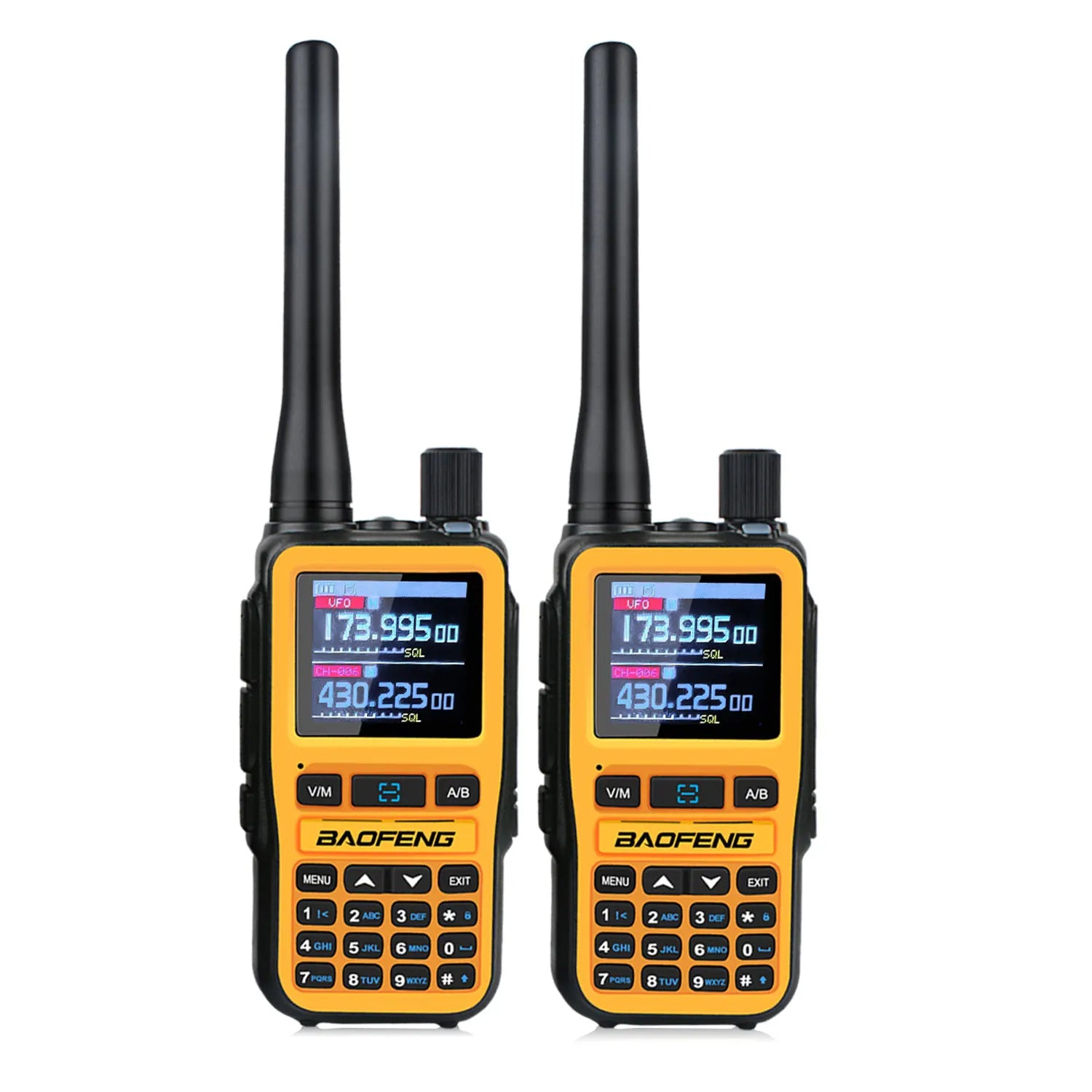

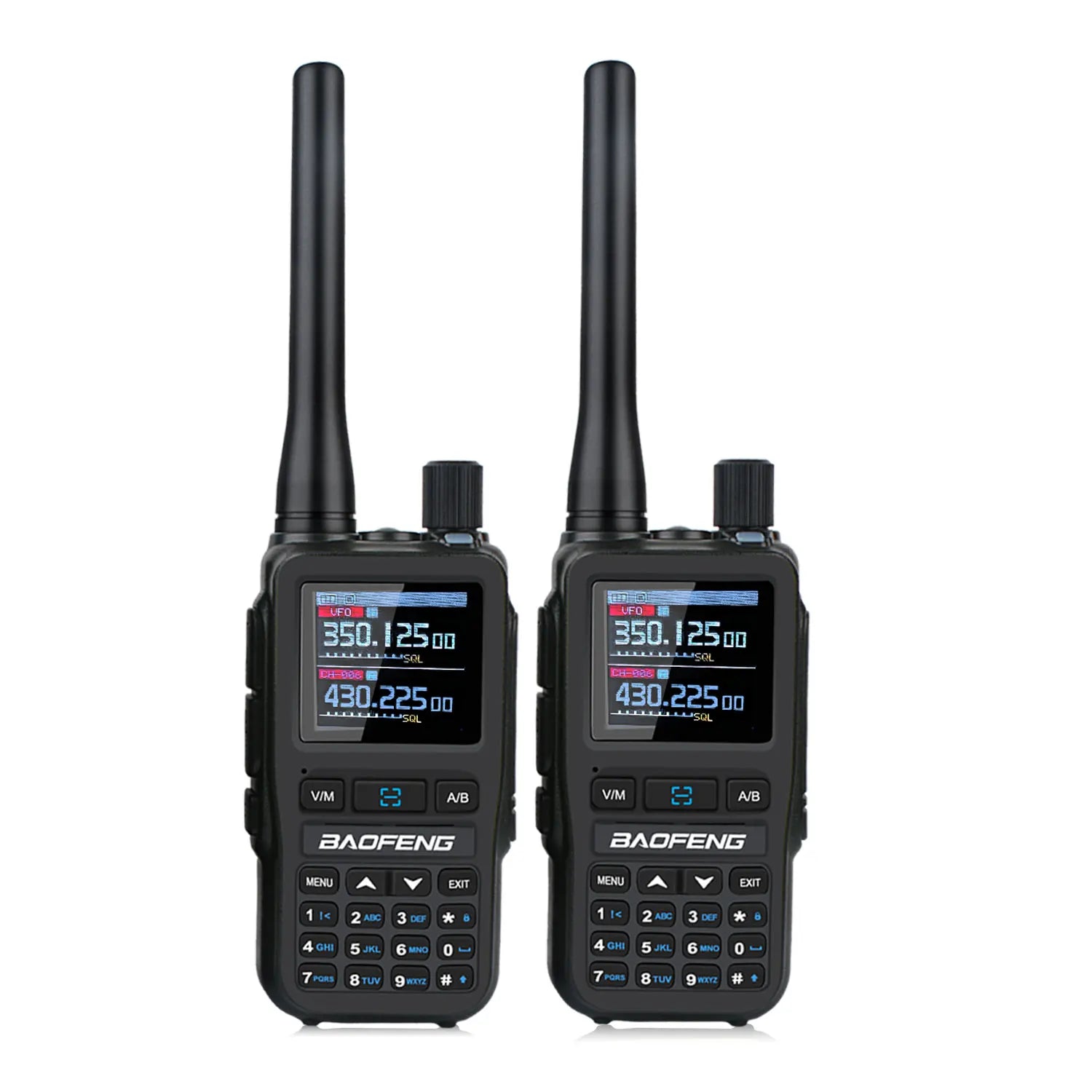

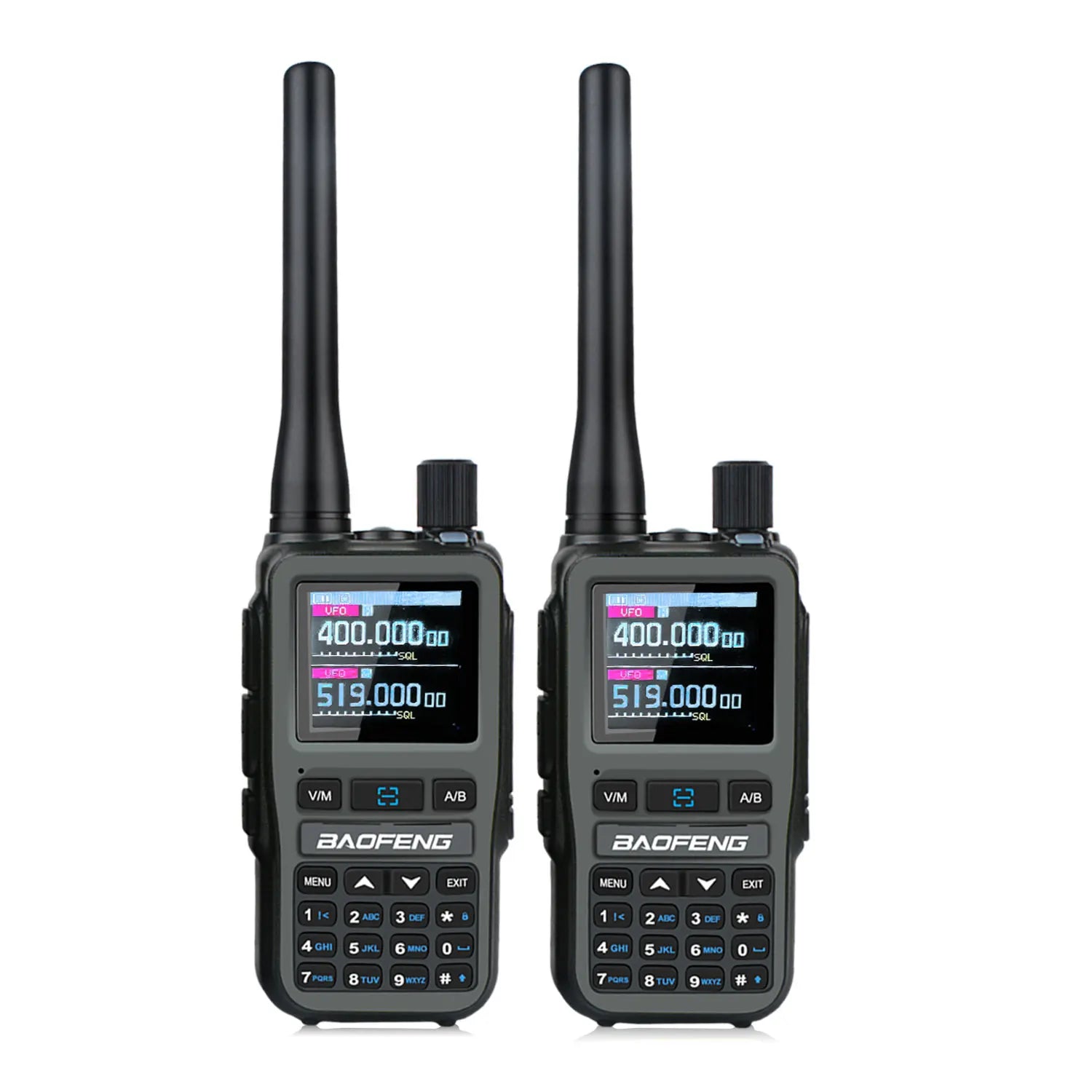

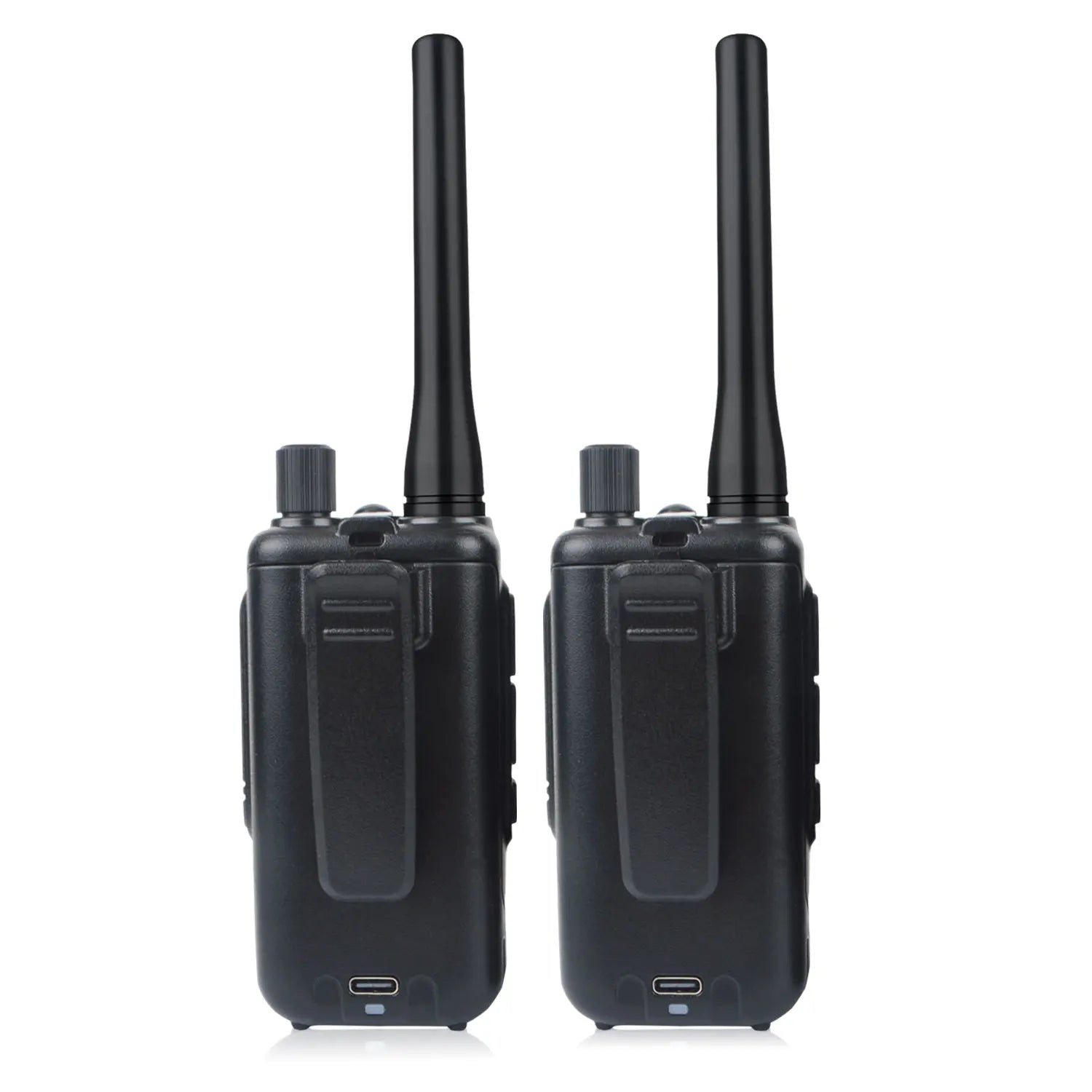

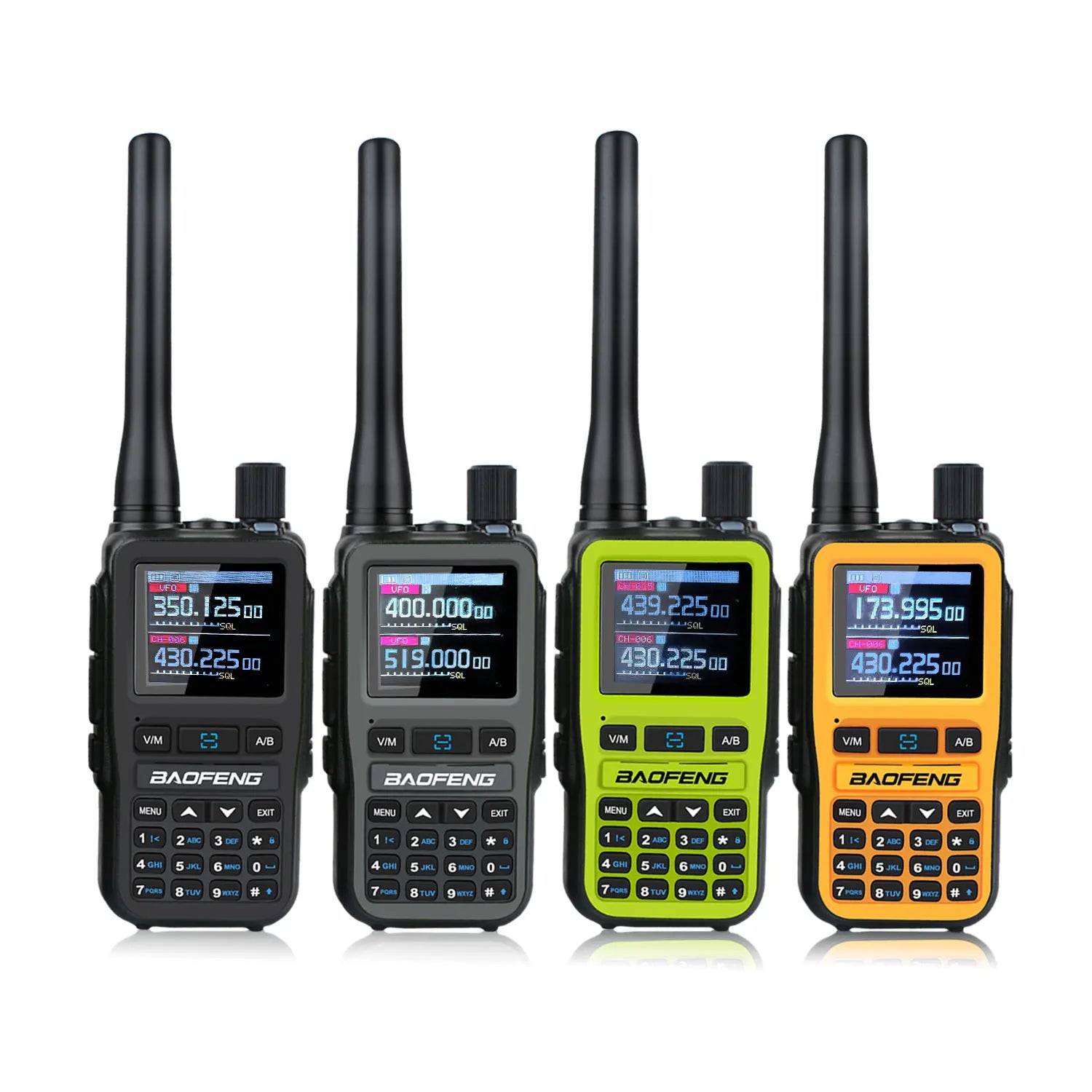

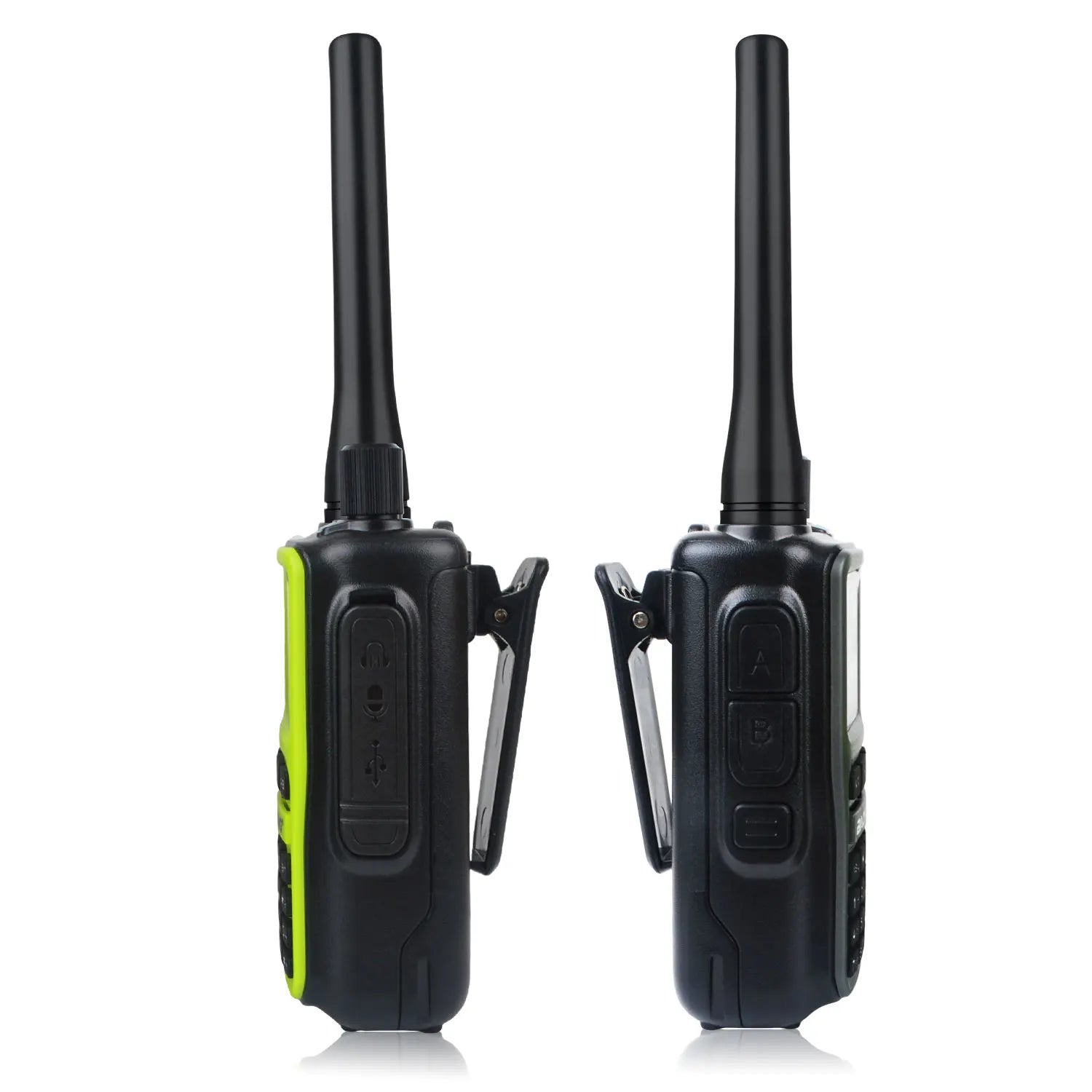

Baofeng UV5R Mini Dual Band Walkie Talkie 5W VOX Radio
Baofeng UV5R Mini Dual Band Walkie Talkie 5W VOX Radio
Regular price
$61.99 USD
Regular price
$0.00 USD
Sale price
$61.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Stay connected on the go with the Baofeng UV5R Mini Dual Band Walkie Talkie—a compact 5W VOX radio for reliable multi-band comms.

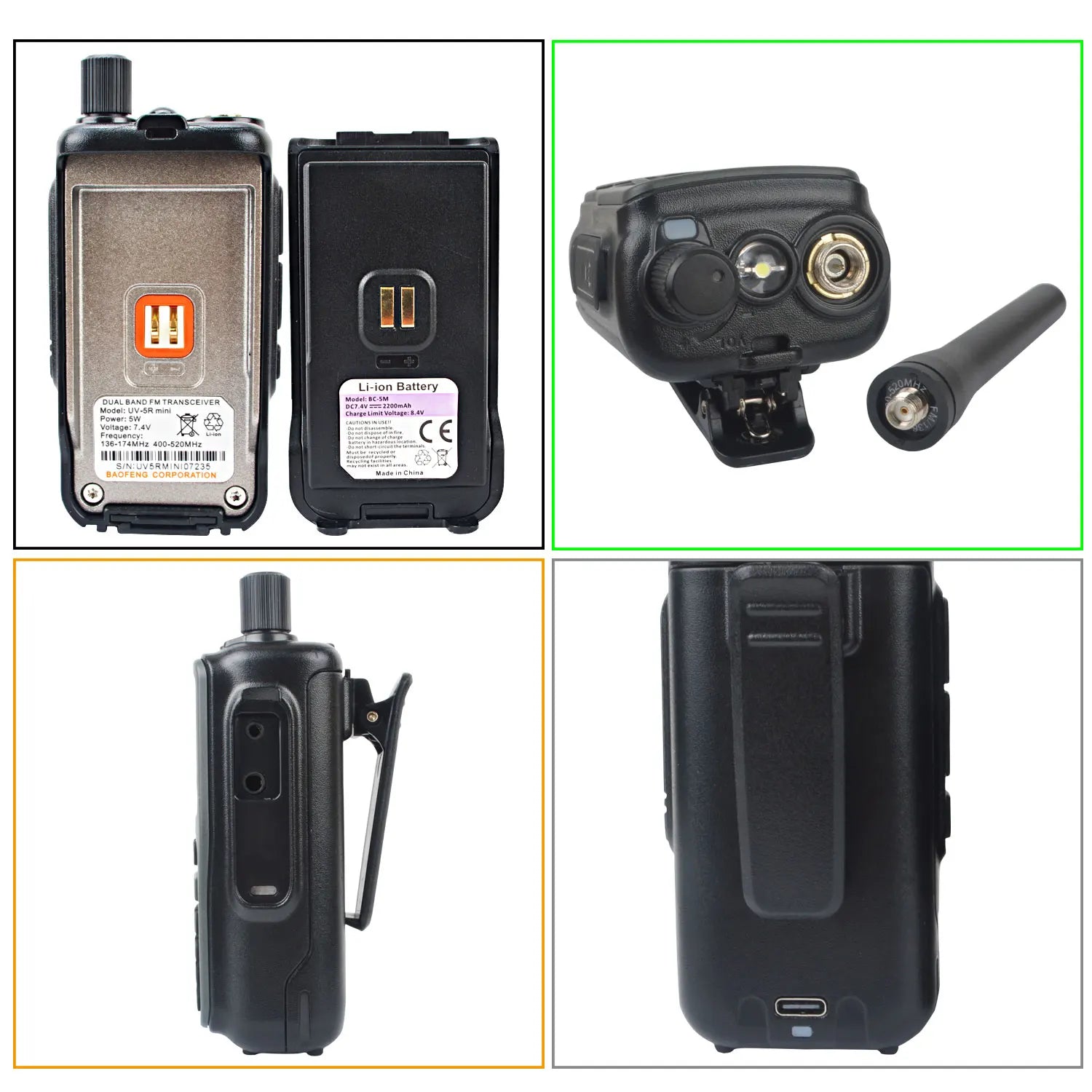

- Two 1600mAh Type-C rechargeable batteries deliver extended operation, with USB-C charging and a dedicated charging port on the battery for quick top-ups.
- Broad band coverage: FM receive 65–108 MHz, aviation receive 108–135.9975 MHz, VHF 136–174 MHz TX/RX, and UHF 400–520 MHz TX/RX for versatile outdoor and commercial use.
- Color display and controls: 1.44-inch TFT color screen, dual PTT switches, VOX, 1W HI-FI speaker, and alert tones (1000/1450/1750/2100 Hz) for clear notifications.
- Memory and package: 999 channels, 25 kHz wide or 12.5 kHz narrow spacing; twin-pack includes two radios, two 1600mAh batteries, two antennas, two belt clips, two USB-C cables, two lanyards, and manual.
General | |
Channel Capacity |
999 |
Channel Spacing |
25KHz (Wide Band),12.5KHz(Narrow Band) |
Input Voltage |
DC7.4V(Rechargeable Lithium Battery) |
Frequency Stability |
±2.5ppm |
Antenna Impedance |
50Ω |

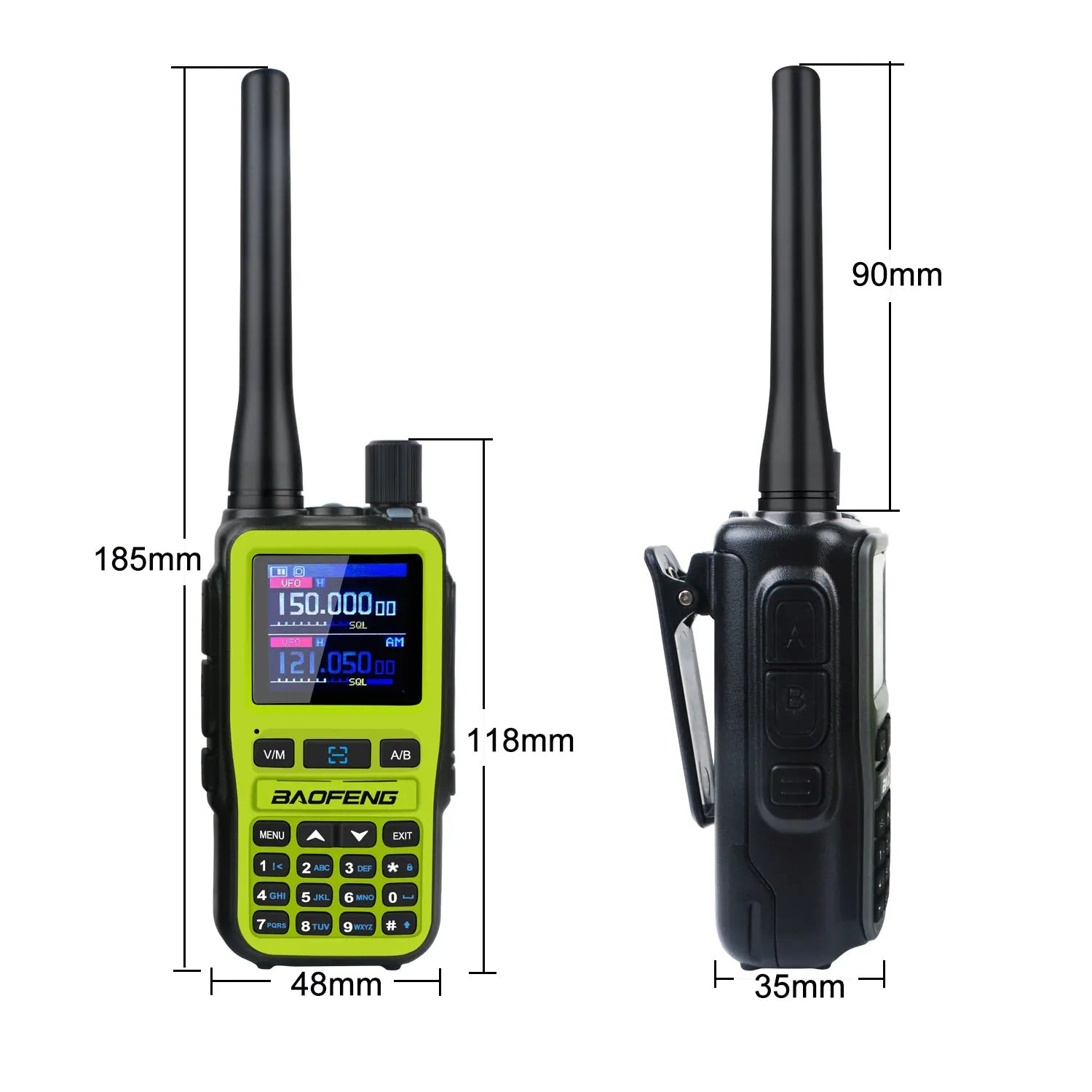

Radio Dimensions |
52(W)*107(H)*37(D)mm |
Radio Weight |
200g (including antenna and battery) |
Transmitter | |
Transmit Current Drain |
≤1.6A |
Modulation |
16K0 F3E/11K0 F3E |
Max Frequency Deviation |
≤5KHz/≤2.5KHz |
FM Hum & Noise |
≥-45dB/≥-40dB |
Receiver | |
Sensitivity |
≤0.25Uv (12dB SINAD) |
Rated Audio Power Output |
1W 10% |
FM Hum& Noise |
≥45dB |
